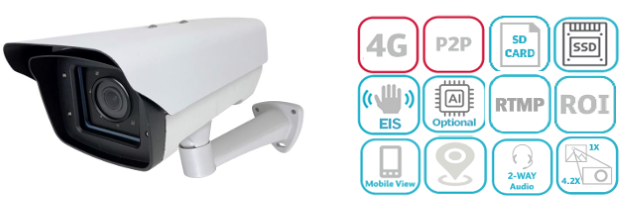

- 3G 4G/LTE Camera
- Support 2.5" SSD or SD card for recording
- Made in Taiwan and built-in Taiwanese brand SoC
- AI function by option
- Starlight & true WDR performance
- Built-in 4.2X motorized zoom lens 2.8-12mm
- Built-in GPS
- ROI (Region of Interest) & smart stream function
- Smart IR to 50 Meter
- IP66
- Mobile view support (push video)
- P2P (peer-to-peer) easy installation
- PoE support
- Support power by solar panel
- ONVIF compliant
| Server | Compression | H.265 / H.264 / MJPEG, 4 Streams |
| Resolution | 1920x1080@30fps, 1280x720@30fps, 640x360@30fps | |
| Traffic Control | 32K ~ 8Mbps | |
| Max. Frame Rate | (30fps)1920x1080 | |
| Safety | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP |
|
| Protocols | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS , DNS , ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Onvif profile S,T,G |
|
| Number of User | Max. 10 connections | |
| Alerting | SMTP / FTP / Samba / SD card / IO | |
| Pre / Post Alarm | Pre(0,1,2,3,4,5) / Post(0,1,2,3,4,5,10)seconds | |
| Release for Alarm | Motion Detection / IO / Tampering Detection / Sound Detection | |
| Network Camera |
Sensor | 1/2.8” Sony STARVIS CMOS sensor IMX 307 |
| Optical Lens | Motorized lens 2.8-12mm / optical 4.2X zoom in / F1.4 | |
| View Angle | 30.7~85.3°(H), 17.2~46.1°(V) | |
| WDR | Ture WDR 120dB | |
| AGC | 8X ~ 128X | |
| Shutter Time | Outdoor / Indoor / 1/30, 1/50, 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/5000, 1/10000 |
|
| Min Illum | 0.003 Lux (Color), 0.001 Lux (B/W) | |
| IR LED / Range | 6pcs High Power LED / 50M | |
| Day / Night | Light sensor mode / Color mode(Day) / B/W mode(Night) / Times mode Synchronize with DI input |
|
| Intelligent Feature | ROI / Smart Stream / Tampering Detection / Sound Detection / 3D-De Noise Lens Distortion Correction (LDC) / Anti Fog / True WDR / Corridor Mode Privacy Mask Smart IR / Push Video Notification / P2P |
|
| GNSS | GPS | GPS/GLONASS/BeiDou/Galileo/QZSS |
| LTE Bands | Europe Module | LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| America Module | LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
|
| Japan Module | LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
|
| SIM Card Slot | External micro sim card slot | |
| Audio | Audio Compression | G.711(64Kbps) / G.726(32Kbps) / G.726(24Kbps) |
| Adjust Volume | Mic-in / Audio-out web adjustable | |
| Audio In | 3.5mm stereo jack, support 2 way | |
| Audio Out | 3.5mm stereo jack, support 2 way | |
| Terminal | Network Interface | Ethernet (10Base-T/100Base-Tx) / PoE |
| Video Interface | -- | |
| External Port | DI x 1 / DO x 1 | |
| SSD | - 2.5 inch SATA port x 1 support up to 1TB - Recording for schedule, Motion detection, IP check, DI Network wire break down - Recording management |
|
| SD Card | - Micro SD Card Slot support up to 256G - Recording for schedule, Motion detection, IP check, DI Network wire break down - Recording management |
|
| General | Operation Voltage | DC 12V Max: 12W / PoE Max: 13.5W |

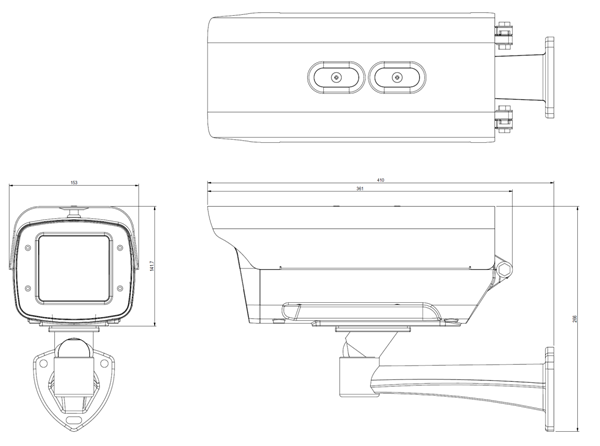

| Dimen./Weight | 153mm(W) x 141mm (H) x 361mm(L) / 3250g | |
| Operation Temp. | -20℃ ~ +60℃ | |
| Enclosure Certificate | IP66 |
|
Type
|
Description
|
Download
|
| Spec | Specification Sheet |  |
| Firmware | Latest Firmware | |
| Manual | User Manual | |
| Manual | Quick Installation Guide | |
| Software | Recording Software | |
| Software | IP Scanner | |
| APP | Andriod APP | |
| APP | iPhone APP | |
