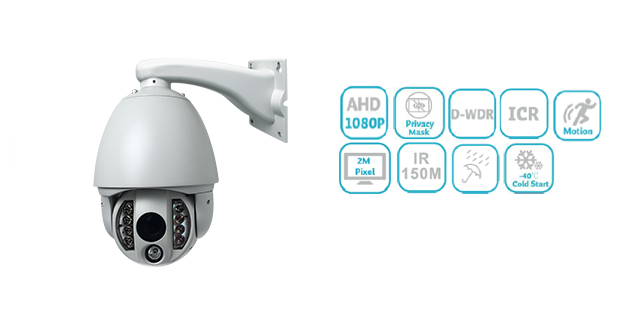

YAH-KX20-R

• 2MP/1080P 30fps AHD speedome
     • 20X optical zoom with 4X digital zoom
     • Digital image stabilization / Digital WDR
     • Smart IR, with distance 150 Meter
     • Privacy zone mask x 6 areas
     • Easy PTZ control (patrol groups)
     • Support cruise x 8 groups & 256 preset points
     • OSD menu control
     • -40~60℃ wide temperature range (Heater for option)
     • RS-485 support
     • Online firmware upgrade ( Only Yudor DVR )

System	Resolution	1920x1080@30FPS
	Video Output	AHD
	Firmware Upgrade	Yes (Only Yudor DVR)
AHD Camera	Sensor	1/2.9" SONY Exmor CMOS sensor 2 Megapixel
	Optical Lens	20X optical zoom lens / f=4.7 - 94mm / F1.6 - 2.8
	Shutter Time	Flickerless, 1/30 ~ 1/5000
	Min Illum (AGC ON)	0.08 Lux(Color) / 0.05 Lux(B/W)
	IR LED / Range	9pcs / 150M
	View Angle	Wide: 3.48°~62.6° / Tele: 2°~39.16°/s
	Pan / Tilt Range	Pan: 360° / Tilt: 0°~90° Auto Flip
	Manual Control Speed	Pan: 0.42°~25.8°/s / Tilt: 0.31°~18.69°/s
	Preset Accuracy	<±0.15°
	Preset Points	256
	Day / Night	Auto / Color / B/W / Time Mode with auto ICR
	DNR Mode	Off / Low / Middle / High
	WDR Mode	Off / Low / Middle / High
	Video Orientation	Off / Flip / Mirror / Rotate
	Sharpness	-4 ~ 4
	Exposure Compensation	-6 ~ 6
	Defog	Off / On
	OSD	Off / On
	Privacy Mask	6
	I/O	2 DI / 1 DO
	RS-485	YES
	White Balance	Auto / Indoor / Outdoor / Fine shade 7500K / Cloudy weather 6000K / Fluorescent light 4200K / Halogen light 3200K / Electric light bulb 2900K
General	Operation Voltage	With heater: DC 36V Max: 44W Standard: DC 36V Max: 40W
	Dimen./Weight	227.1mm(φ) x 346.2mm(H) / 5.3 Kg
	Operation Temp.	-40℃ ~ +50℃ (with heater) -20℃ ~ +60℃ (standard )
	Waterproof	IP66

Certificate：CE , FCC , RoHS
*No SD card slot & local storage function for Argentina
