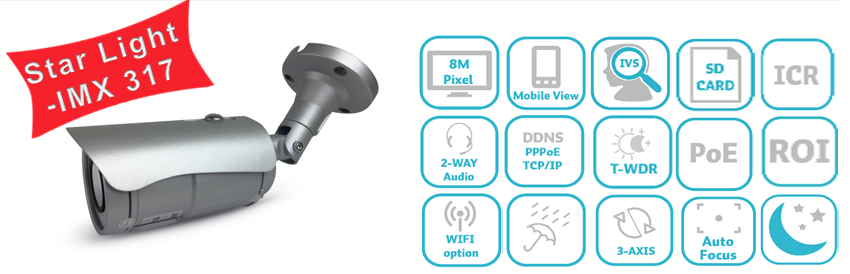

• Starlight performance & true WDR
• Built-in 4.8X motorized zoom lens 2.8-13.5mm
• ROI (Region of Interest) & smart stream function
• Higher ESD & surge protection design
• Smart IR to 40-50 Meter
• Motion detection (area/sensitivity/time adjust)
• Day/night profile adjustment
• IP68 & IK10
• Mobile view support (push video)
• PoE support / Wifi optional
• ONVIF compliant
| Server | Compression | H.264+ / H.264 / MJPEG, 4 Streams |
| Resolution | 3840x2160@30fps , 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x360@30fps | |
| Traffic Control | 32K ~ 10Mbps | |
| Max. Frame Rate | (30fps)3840x2160 | |
| Safety | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP |
|
| Protocols | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS , DNS , ICMP, IGMP, ARP, SNTP, QoS/DSCP, CoS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Onvif profile S,T,G |
|
| Number of User | Max. 10 connections | |
| Alerting | Mail / FTP / Samba / SD card / DO | |
| Pre / Post Alarm | Pre(0,1,2,3,4,5) / Post(0,1,2,3,4,5,10)seconds | |
| Release for Alarm | Motion Detection / IO / Tampering Detection | |
| Network Camera |
Sensor | 1/2.5” Sony STARVIS CMOS sensor IMX 317 |
| Optical Lens | Motorized lens 2.8-13.5mm / optical 4.8X zoom / F1.6 | |
| View Angle | 34.7~106.6°(H), 19.2~55.9°(V) | |
| WDR | Ture WDR 120dB | |
| AGC | 8X ~ 128X | |
| Shutter Time | Outdoor / Indoor / 1/1, 1/30, 1/50, 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/5000, 1/10000 | |
| Min Illum | 0.01 Lux (Color), 0.005 Lux (B/W) | |
| IR LED / Range | 5pcs High Power LED / 40-50M | |
| Day / Night | Light sensor mode / Color mode(Day) / B/W mode(Night) / Times mode Synchronize with DI input |
|
| Intelligent Feature | ROI / Smart Stream / Tampering Detection / Lens Distortion Correction (LDC) / True WDR Corridor Mode / Anti Fog / Privacy Mask / 3D-De Noise / Smart IR / Push Video Notification P2P Optional |
|
| Audio | Audio Compression | G.711(64Kbps) / G.726(32Kbps) / G.726(24Kbps) |
| Adjust Volume | Mic-in / Audio-out web adjustable | |
| Audio In | 3.5mm stereo jack, support 2 way | |
| Audio Out | 3.5mm stereo jack, support 2 way | |
| Terminal | Network Interface | Ethernet (10Base-T/100Base-Tx) / PoE / WiFi (802.11b/g/n) optional |
| Video Interface | N/A | |
| External Port | DI x 1 / DO x 1 / Default x 1 | |
| SD Card | Micro SD Card Slot support up to 256G (Recording trigger for schedule, Motion detection, IP check, Network wire break down, DI) |
|
| General | Operation Voltage | DC 12V Max: 7.2W / PoE Max: 8.5W |
| Dimen./Weight | 77.4mm(φ) x 125.5mm(H) / 720g | |
| Operation Temp. | -20℃ ~ +60℃ | |
| Enclosure Certificate | IP68, IK10 |
|
